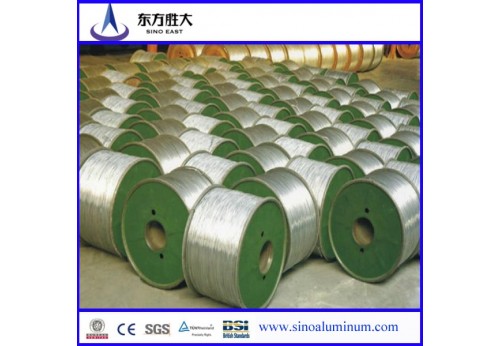

High quality aluminium wire!!! 5154 aluminum wire
IEC 60317 aluminum round magnetic wire
Among all of its high-tech magnet wire products, Sino East offers a complete range of round enameled wire with copper or aluminum as the conductor:
Sino East’s round wires can be supplied in the wire diameter from 0.1-6.5 mm².
1. 120 degree round enameled wire for oil-immersed transformer
2. 130, 155, 180 degree round enameled wire are widely used in all kinds of magnet coil
3. 200 degree round enameled wire works constantly in high temperature
4. 240 degree round enameled wire for magnet coils of aviation, military and marine application
Round Wire Diameter Range: 0.2-6.5mm
|
Product Name |
QZ-130 |
QZ-180 |
Q(ZY/XY)-200 |
QY -240 |
|
Standard |
GB/T6109.7 GB/T23312.3 |
MW 30 60317 – 8 GB/T6109.5 GB/T23312.5 |
MW 35 60317 – 13 BS 6811 GB/T6109.20 GB/T23312.7 |
MW 16 60317-46 GB/T6109.22
|
|
Thermal Class |
130℃ |
180℃ |
200℃ |
240℃ |
|
Enamel Base Coat |
Polyester |
Polyester-Imide |
Polyester-Imide |
Polyimide |
|
Enamel Top Coat |
|
- |
Polyester-Imide |
|
|
Cross Section Range |
0.2-6.5mm |
0.2-6.5mm |
0.2-6.5mm |
0.2-6.5mm |
|
Range of insulation thickness |
IEC 60317-0-1 GB6108.2-85 |
IEC 60317-0-1 GB6108.2-85 |
IEC 60317-0-1 GB6108.2-85 |
IEC 60317-0-1 GB6108.2-85 |
|
Performance |
1.excellent bending property 2.high flexibility of the enamel 3.good resistance to abrasion 4.high mechanical property
|
1.higher thermal property 2.suitable for windings that are subjected to constantly high temperature and mechanical stress 3.good chemical resistance |
1.excellent thermal resistance 2.suitable for windings that are subjected to constantly high temperature and mechanical stress 3.good chemical resistance 4.good resistance to refrigerant |
1.excellent thermal resistance suitable for any electric equipments that are constantly exposed to high working temperature 2.outstanding mechanical and chemical property 3.good performance against radiation |
|
Application |
1.dry & oil-immersed transformer 2.electrical equipment |
1.winding of high and low voltage DC/AC motor 2.magnet coil 3.dry & oil-immersed transformer
|
4.winding of high and low voltage DC/AC motor 5.magnet coil 6.dry & oil-immersed transformer 7.automobile coil 8.train coil |
1.winding with service temperature up to 220°C 2.motor and generator for aviation and marine application 3.nuclear industry 4.winding requiring high reliability |
|
Heat shock |
155℃ |
200℃ |
220℃ |
300℃ |
