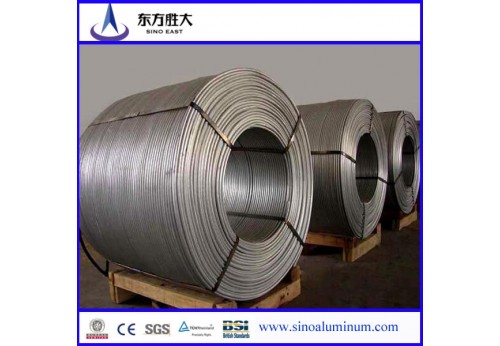

Low price with good quality !!! Aluminum Wire Rod 6101
Specifications
aluminum 6101 wire
1.Size:0.2-8.0mm
2.certification:UL,SGS,ISO9001,ISO14000
3.Standard: IEC, NEMA,GB
World leading product aluminum 6101 wire with low price for motor
1.Size:0.2-8.0mm
2.Thermal Class: 130-220C
3.Standard: IEC, NEMA,GB
4.Certification:SGS,UL
5.Features of aluminum 6101 wire :
a) Excellent resistance to abrasion and solvent,
b) excellent electricity performance
c) Excellent heat shock, adherence and flexibility,
d) high cut through
6.Typical Applications of aluminum 6101 wire :
Relays, Micro-motors, Mini-transformers, Ignition coils, Water valves, Magnetic heads, Coils for telecommunication equipment
7.Remark of aluminum 6101 wire :
The special specification can be produced and accustomed according to requirements of clients.
8.Delivery time of aluminum 6101 wire :
15days-30days
Details Tech Information:
|
Name |
Aluminum winding wire |
||
|
Type |
QZXYL-2/180 |
||
|
Diameter |
6.0mm |
||
|
Standard |
IEC60317-15 |
||
|
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
Overall Diameter |
mm |
<6.159 |
6.09 |
|
Conductor Diameter |
mm |
±0.06 |
5.97 |
|
Thickness of insulation film |
mm |
>0.099 |
0.13 |
|
resistance |
Ω/m |
<0.001017 |
0.000897 |
|
Elongation |
|
>15% |
28% |
|
Tensile Test |
|
Tensing 15% No cracking |
no cracking |
|
Resistance to heat shock |
C |
200C insulation film no cracking |
3D half an hour, no cracking |
|
Resistance to solvent |
|
Standard solvent "H" Pencil |
2H is oK |
|
Breakdown Voltage |
KV |
2.5 KV |
4.2,4.2,4.0,5.3,5.0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
|
